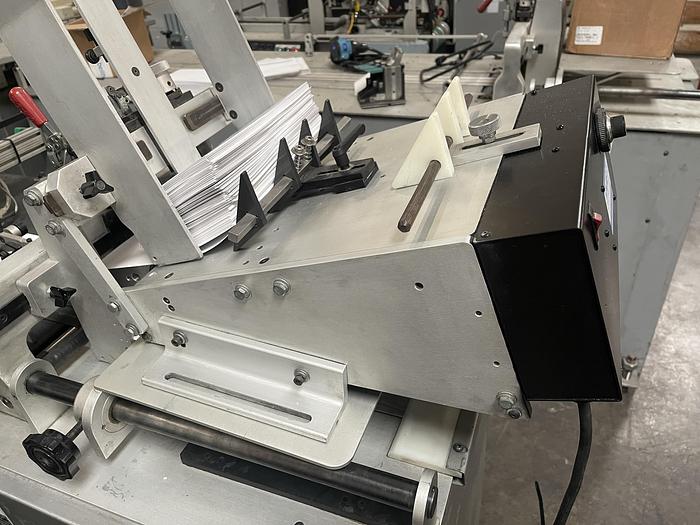

Kirk Rudy 496F Friction Feeder

Kirk Rudy 496F Friction Feeder

Contact us for price

Riverside, CA

orCall 1-951-352-7771



Improve paper feeding capabilities and throughput with the KR496F Friction Feeder. Engineered to handle difficult to feed products like z-folds and open ended products, the KR496F provides the reliability and consistency you are looking for.

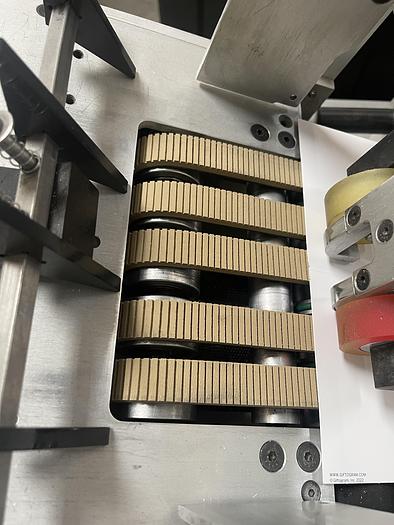

The KR496F is engineered for high production environments. Thick, grooved feed belts keep product flowing on a consistent basis. Durable hold back rollers are independently adjusted to accommodate various thicknesses. Heavy-duty bearings and a solid frame design ensure a long life.

The KR496F is available in a variety of different configurations. Kits allow it to feed small cards and small folded pieces as well as flat boxes up to 18” wide. Adding a servo onto the KR496F makes it ideal for high-speed sorting to accurate attaching.

Easily feeds difficult items such as Z-folds and open-ends

Portable design – easily mounts onto KR-215IJ feed

Rugged construction

Quick change feed belt design

New Belts, Upper Feed Wheel, Exit Rings


ManufacturerKirk Rudy
Stock Number00014
Material SizeWidth Min 3” (76 mm) Max 11” (280 mm) Length Min 4” (101 mm) Max 12” (305 mm)
SpeedMaximum Variable to 800 fpm
