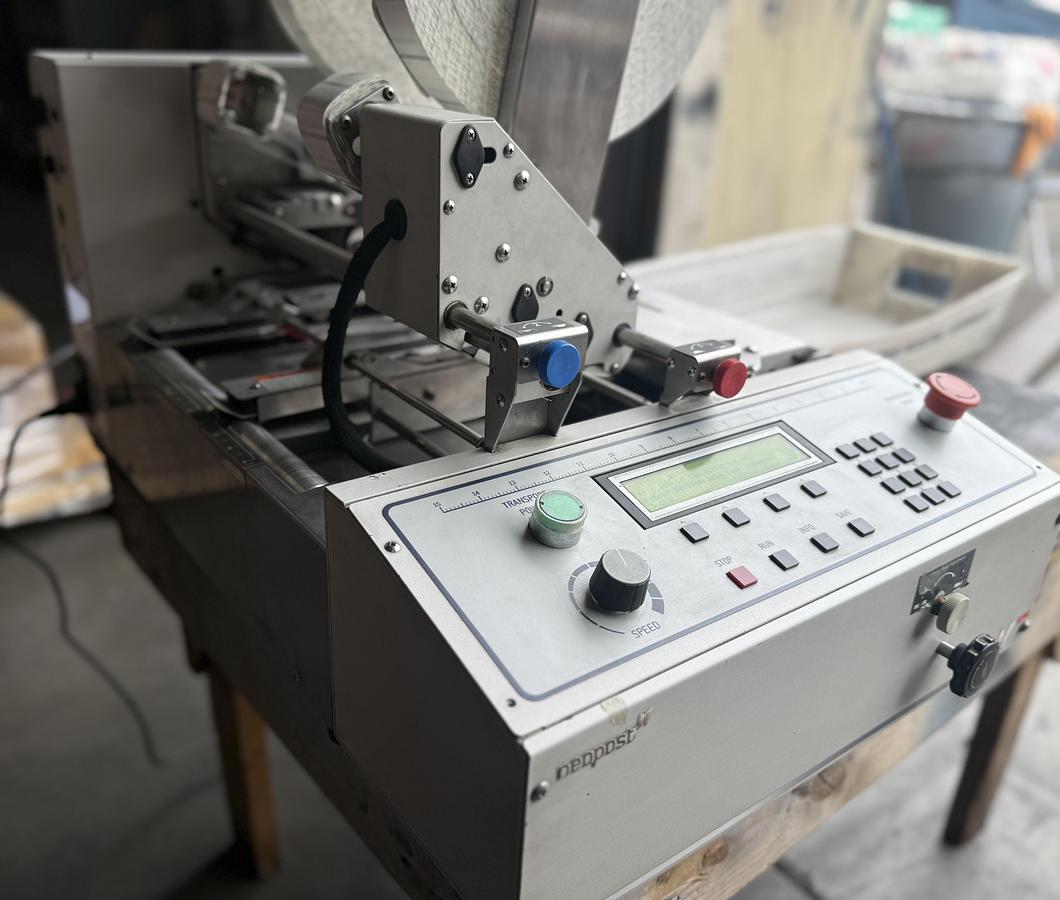

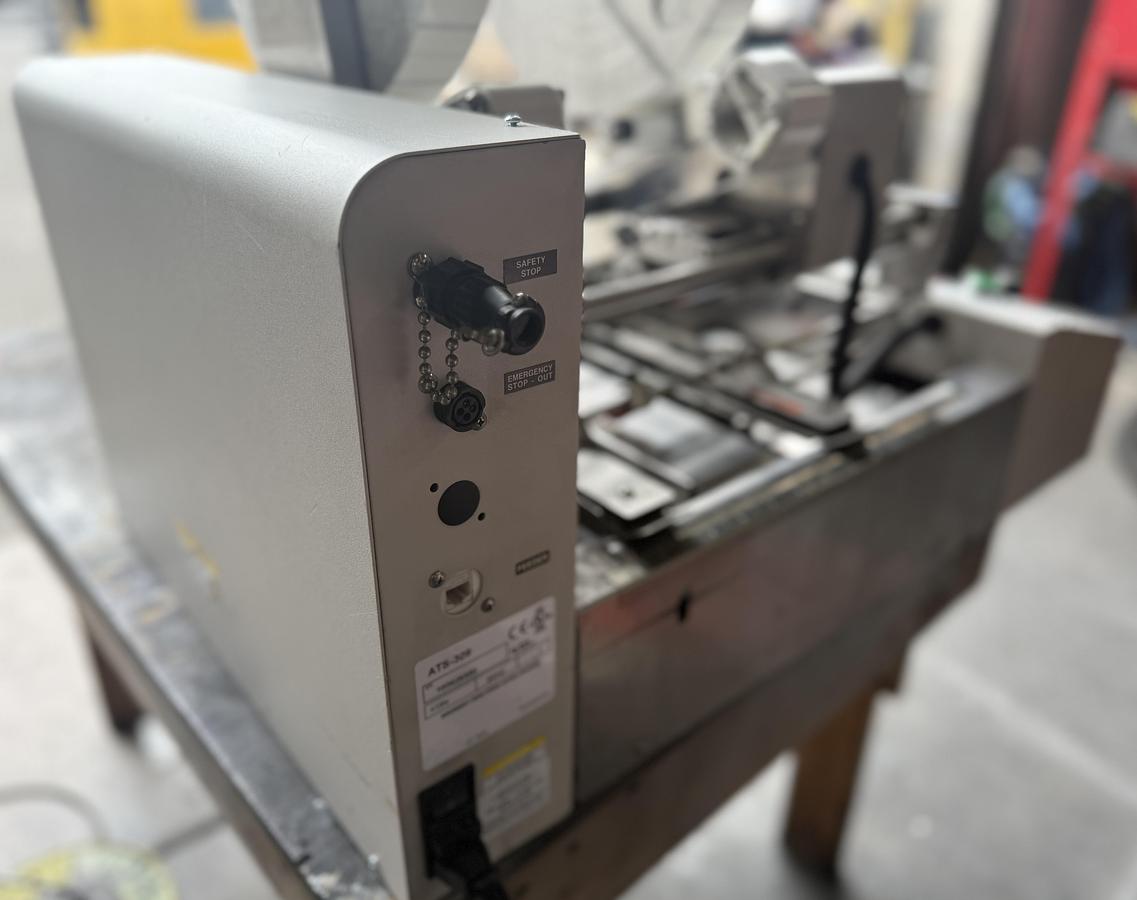

Astro ATS-309 Dual-Head Tabber - Tabs Two Sides in One Pass

The Astro ATS-309 Tabber is a versatile and robust machine designed for efficient tabbing and stamp affixing in mailing operations. Here's a breakdown of its key specifications and features:

1. Applies triple, double or single tabs
2. Handles wide range of documents and promotional materials-flyers, newsletters, and booklets
3. Can apply up to 3 USPS postage stamps on a self-mailer

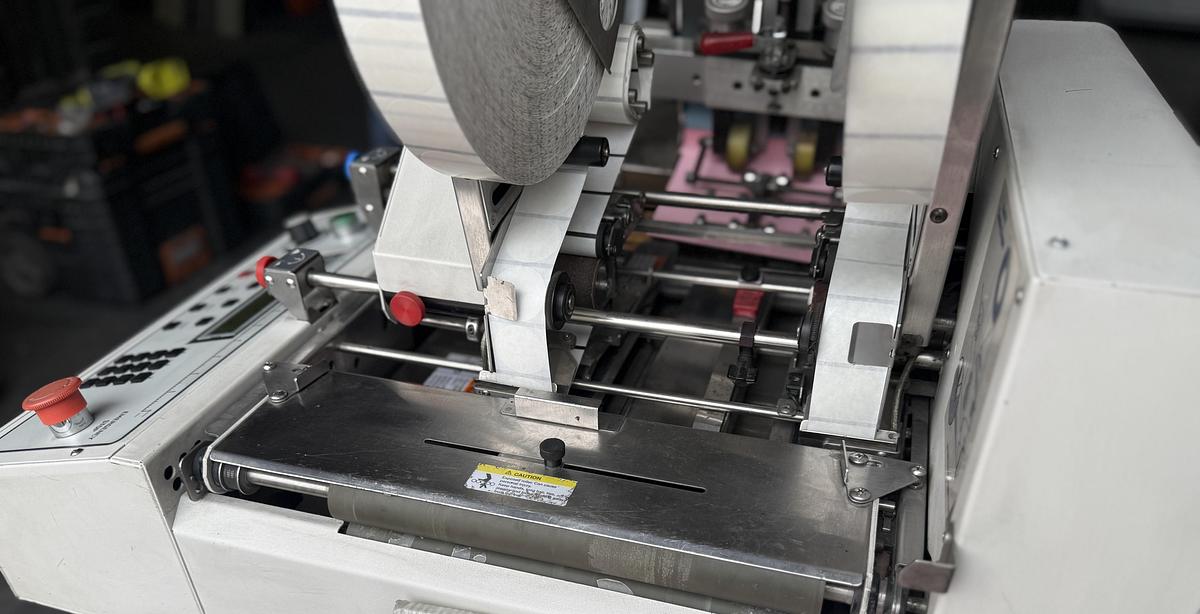

4. Applies tabs to the top and side of a mail piece simultaneously and on opposite side
5. Applies round tabs from 3/4" to 1 1/2"
6. Handles a variety of paper stocks - coated, newsletter, recycled, card
7. Digital LCD control panel has the ability to program and save up to four jobs
8. Applies clear, translucent and paper tabs
9. Processes media from 5" W x 3 ½" L to 11" W x 15 L", up to 1/4" thick

Astro ATS-309 Tabber: Key Specifications & Features

General Capabilities:

• Multi-Purpose: Applies tabs (clear, translucent, or paper) and stamps to mail pieces.
•

• Flexible Tabbing: Can apply 1 to 3 tabs per mailing piece.
•

• Simultaneous Tabbing: A key feature is its ability to simultaneously tab both the front and a side, or both sides, in a single pass, making it highly efficient for meeting postal regulations for booklet tabbing.
•

• Media Versatility: Handles a wide variety of open-ended media, including mail pieces, folded stock, double postcards, newsletters, and booklets.
•


Performance:

• High Speed: Capable of applying tabs at speeds up to 25,000 pieces per hour (for 1 tab).
•

• For two sides tabbed simultaneously: up to 15,000 pieces/hour (2 tabs) and 10,000 pieces/hour (3 tabs).
•

• Accuracy: Ensures accurate placement with tightly closed tabs, critical for postal compliance.
•

• Reliable: Designed for consistent performance in medium to high production runs.
•


Material Handling:

• Product Sizes (Media Size):
• Minimum: 3.5" (89mm) width x 5.0" (127mm) length
• Maximum: 11" (279mm) width x 15" (381mm) length
•

• Product Thickness: Up to 0.25" (6.35mm / 1/4")
• Tab Sizes: Minimum 0.75" (3/4") to Maximum 1.5" (38mm)
•

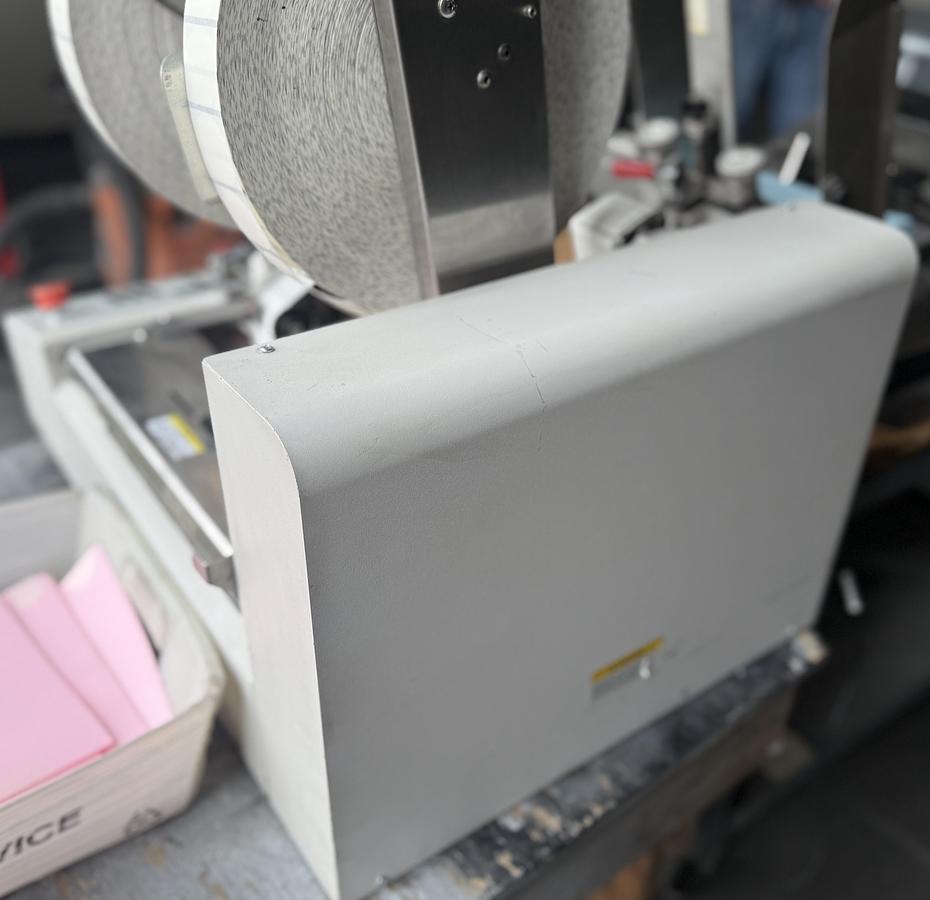

• Reel Capacity: Two reels, up to 12" (305mm) diameter each.
• Tab Materials: Runs clear, frosted, and opaque tabs.
•


Operational Features:

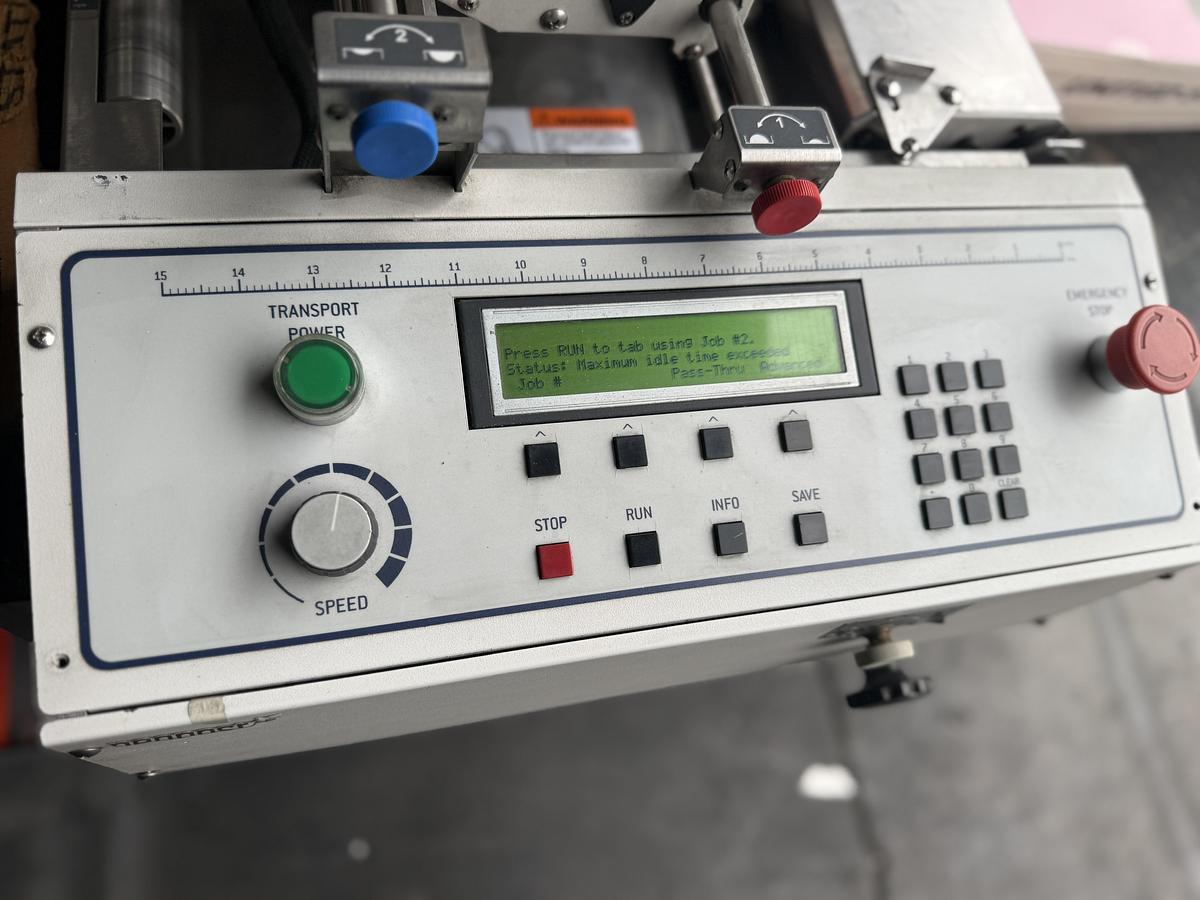

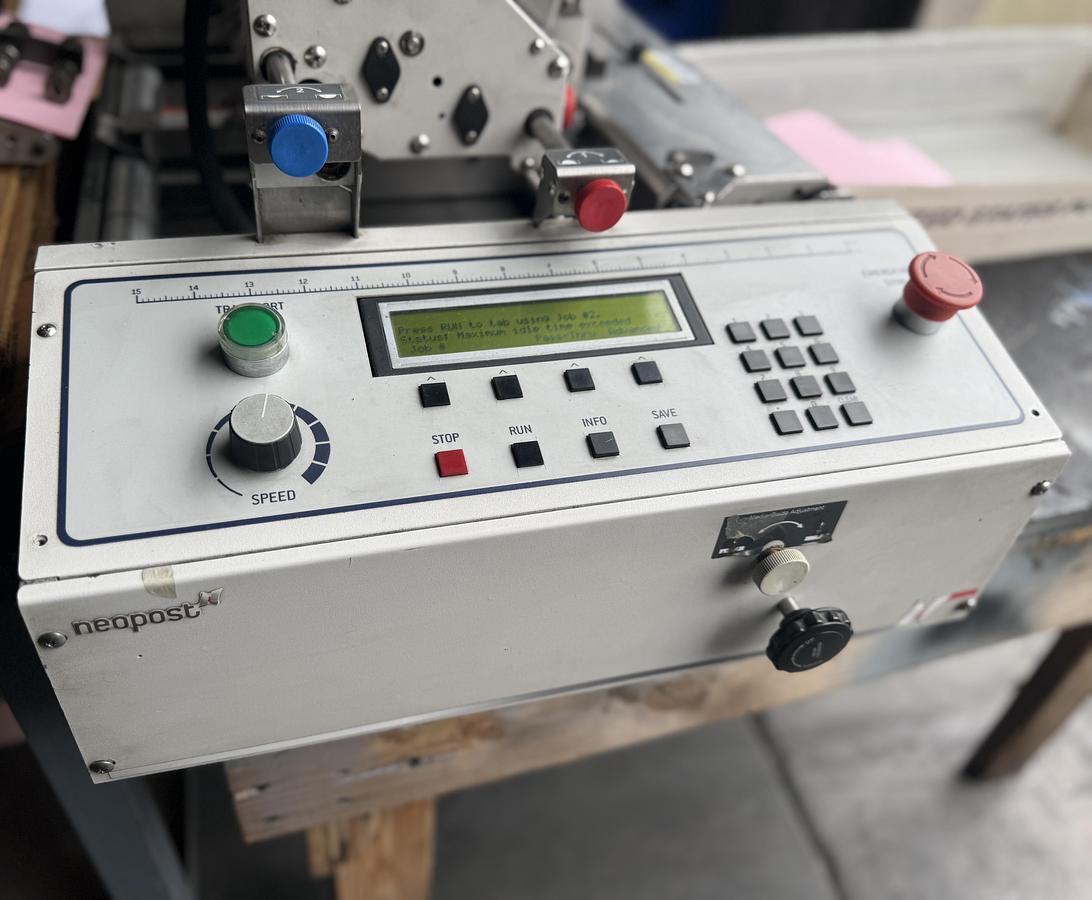

• User-Friendly Controls: Easy to set up and operate with a well-organized control panel.
•

• Automatic Calibration: Automatically calibrates media size and tab positioning.
•

• Job Memory: Can store up to 4 repeat jobs in memory for quick recall.
•

• Micro Adjustments: Allows for fine-tuning of tab placement for precision.
•

• In-line or Stand-Alone: Can be used in-line with other mailing equipment (like address printers and conveyors) or as a stand-alone unit (requires an optional automatic feeder).
•


Construction and Design:

• Solid Steel Construction: Built for durability and long-lasting performance.
•

• Take-Up Spools: Two included for waste material.

Electrical:

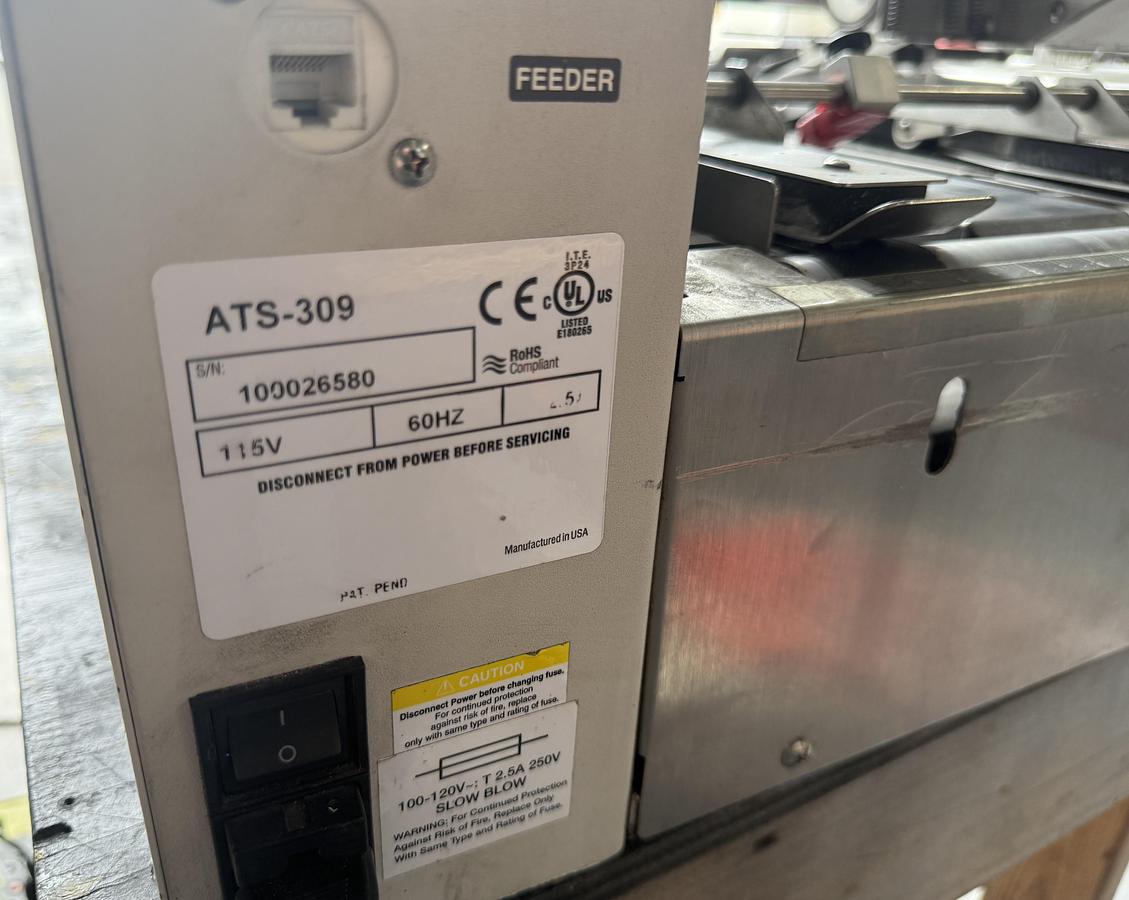

• 110 VAC or 115 VAC (depending on region/specific model), other voltages may be available.
• 230VAC 50/60Hz (for AMS branded models, UK/Europe)

Physical Dimensions:

• Machine Dimensions (approx.):
• Width: 28" (711mm)
• Height: 26" (660mm) (with reels)
• Length: 34" (864mm) (with optional feeder)
• Weight: 97 lbs (approx.)
