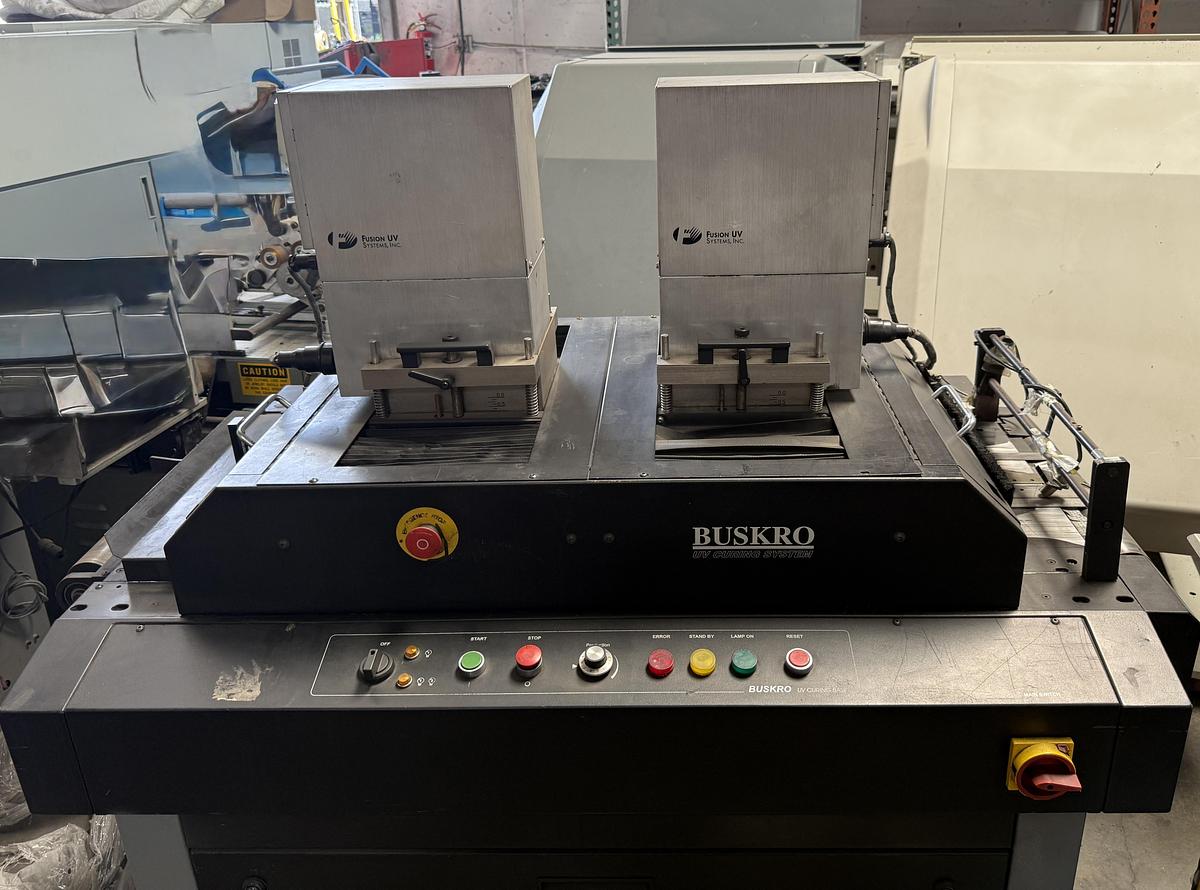

Buskro BK750 UV Curing Base

The Buskro BK750 is a heavy-duty UV curing and transport base designed for inline or stand-alone production environments. Used to cure UV-based inkjet printing on mail, packaging, labels, cards, and promotional materials. The BK750 provides stable material control with vacuum transport and adjustable belt speed, ensuring consistent curing at high production speeds.

Key Features

• UV lamp curing system for high-speed inkjet applications
• Vacuum-assisted transport belts for stable product handling
• Adjustable belt speeds for precise curing control
• Heavy-duty frame for continuous production environments
• Safety interlock doors and emergency stop controls
• Can operate inline with inkjets, feeders, and finishing equipment

Typical Applications

• Direct Mail Addressing
• Card & Membership Production
• Carton / Packaging Print
• Promotional Variable Data Printing
• Label and Form Production

Specifications

FeatureDetailSubstrate Size (Min)3.0" x 5.0"Substrate Size (Max)16.0" x 17.0"Maximum Material ThicknessUp to 1-1/8" (28mm)Belt Speed Range28 to 600 ft/min (0.14 to 3.0 m/s)Conveyor TypeVacuum Transport BeltUV Lamp ConfigurationSingle or Dual UV Lamp (depends on model)Power Requirement200–240V, Single Phase (approx. 50A depending on lamp configuration)Unit Length~58" (1473mm)Unit Width~33.75" (857mm)Unit HeightAdjustable ~56"–60.5" (1422–1537mm)
